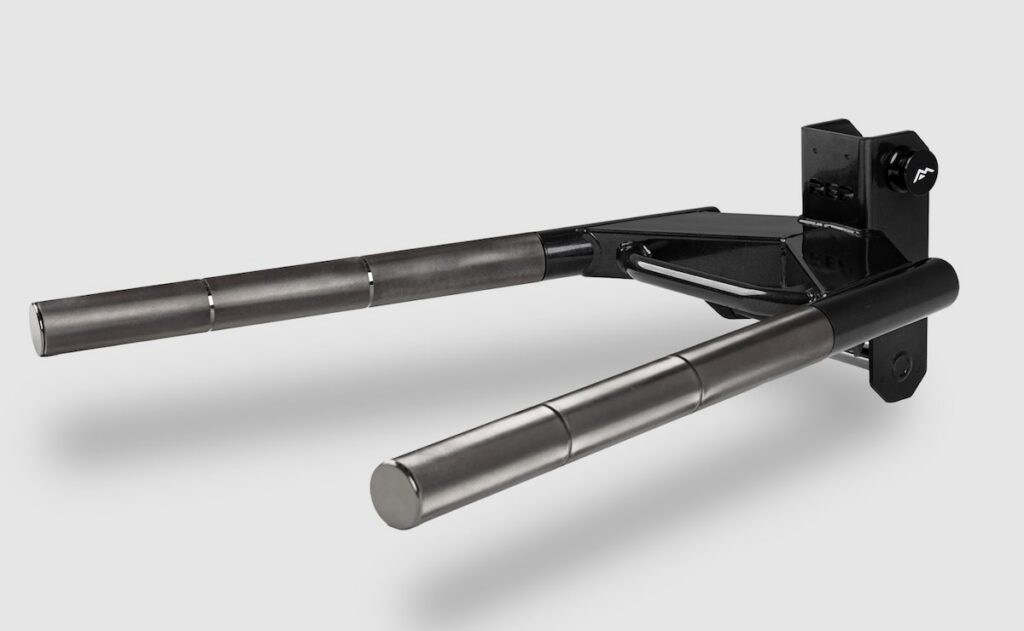

REP Fitness Dip Attachment 2.0 Review: Thick Knurled Handles and Smart Rack Storage
A dip attachment sounds simple until you start using one regularly. The handles have to feel secure, the rack connection should feel solid, and the attachment needs somewhere to go when you are finished. REP Fitness addresses all three with its Dip Attachment 2.0, but the first thing that caught my attention was the handle size: 2 inches, or 50 mm, in diameter.
That is a substantial grip for a rack-mounted dip station. Combined with fully knurled, black-nickel-coated handles, it gives the attachment a distinctly commercial-grade feel on paper. In fact, the grip design looks more thoughtful than the smooth or rubber-coated handles I have encountered on many commercial dip stations. The other big benefit for a home gym is that the attachment swings into a vertical storage position on the rack. You do not have to carry a 34.1 lb attachment across the room every time you want your rack space back.
The 50 mm Handles Are the Main Attraction
Most dip attachments give you a place to put your hands. REP clearly spent more time thinking about how that contact point should feel. The Dip Attachment 2.0 uses 50 mm diameter handles with volcano-style knurling along their full length, inspired by the knurling on REP’s Colorado barbell. The handles have a black nickel finish, while the frame uses metallic black powder coat.
The thick grip gives you a broad, substantial surface to press against. The knurling should help keep your hands in place as the set gets harder or your palms get sweaty. If you have ever felt yourself repositioning on a slick dip handle halfway through a set, you will understand the appeal. Grip texture is personal, though: lifters who prefer smooth handles may find full-length knurling more aggressive than they want for high-rep work.
The handles angle outward, letting you place your hands at different points along their 19.6-inch length. They do not adjust independently, so this is not a true adjustable-width dip station. Your comfortable grip position will depend on your build and shoulder comfort.
Fold It Up Instead of Taking It Off
The smartest practical feature may be vertical on-rack storage. After training, the attachment stores upright against the rack rather than demanding a separate wall hook or a spot on the floor. For a garage gym where the same uprights host J-cups, safeties, cable trolleys, and other attachments, that convenience matters.
REP says the attachment installs from the side of a compatible upright, swings into position, and secures with the included mag pin. A built-in handle helps with positioning. The attachment occupies 10.7 inches of upright space, so plan the mounting location around your other rack accessories. Vertical storage keeps it attached to the rack; it does not make the attachment disappear or guarantee that every rack configuration will have a clear storage position.
Stability and Training Options
REP rates the Dip Attachment 2.0 for 500 lb total capacity and says tighter tolerances and the mag-pin connection reduce side-to-side movement. That makes it an option for weighted dips as well as bodyweight work, provided the rack itself is set up securely. REP recommends bolting down the rack or using compatible front foot extensions for stability.
Beyond standard dips, REP shows the attachment being used for band-assisted dips, incline push-ups, knee raises, and leg lifts. A dip belt can add resistance for lifters who have moved beyond bodyweight reps. Those possibilities make it more useful than a single-purpose accessory, although dips will remain the main reason to buy it.
Compatibility: Check the Uprights First
REP lists compatibility with its 3-by-3-inch uprights that have 1-inch holes and 2-inch hole spacing, including the PR-5000, Apollo, Omni, Wall-Mount Fixed Rack, and Oxylus Yoke. REP also says it can be used on the front uprights of compatible Ares 2.0 or Athena setups when the cable trolley is moved out of the way.
REP does not guarantee fit on other brands’ racks, even if their advertised dimensions look similar. Manufacturing tolerances and upright details can change how snugly an attachment fits. If you own a non-REP rack, confirm fit before treating the nominal measurements as a guarantee. The handles require assembly when the attachment arrives.
REP Fitness Dip Attachment 2.0 Specifications
| Specification | REP-listed detail |
|---|---|
| Overall length | 25.6 in. / 651.09 mm |
| Overall width | 31.4 in. / 796.86 mm |
| Upright space used | 10.7 in. / 272 mm |
| Handle length | 19.6 in. / 498 mm |
| Handle diameter | 2.0 in. / 50 mm |
| Weight capacity | 500 lb |
| Frame finish | Metallic black powder coat |
| Handle finish | Black nickel |
| Handle texture | Volcano-style knurling |
| Product weight | 34.1 lb / 15.5 kg |
| Storage | Vertical on-rack |
How It Compares With Rogue and Mutant Metals
The closest competitors are the Rogue Velocidor, Rogue Monster Matador, and Mutant Metals Ultimate Dip Attachment (UDA). Prices below are the manufacturers’ listed starting prices checked September 26, 2026, before any applicable shipping or taxes. Handle choices can change the final price.
| Dip attachment | Listed starting price | Handle diameter and grip | Attachment weight | On-rack vertical storage? |
|---|---|---|---|---|
| REP Dip Attachment 2.0 | $199.99 | 2 in. / 50 mm; full-length volcano knurling | 34.1 lb | Yes; swings up and secures on the upright |
| Rogue Velocidor | $310 | 1.9 in. / about 48 mm; smooth or optional knurled handles | 44.5 lb | Yes; flip and remount vertically with its pin |
| Rogue Monster Matador | $195 | 1⅞ in. / about 48 mm; textured comfort grip | 27 lb | No built-in flip-up position; remove it and store separately, with an optional $70 hanger |
| Mutant Metals UDA hybrid | From $399.99 | Standard 35 mm stainless handles with spaced knurl marks; 45 mm upgrade offered | About 30 lb with handles | Yes; flip and reinstall, or lift and support it with a pin for storage |
The REP has the largest standard handle diameter in this group and is the only one here with full-length volcano knurling as the standard grip. It costs just $4.99 more than the Monster Matador at the listed prices, yet adds vertical on-rack storage. The Matador is lighter and simpler, but storing it off the rack adds another step and possibly the cost of the optional hanger.
The Velocidor is the choice for adjustability: three handle spacing positions, four angles, and a smooth or knurled handle choice. It weighs about 10 lb more than the REP and starts $110.01 higher. Both can store vertically, though Rogue describes flipping and remounting its unit with the detent pin. The Velocidor’s knurled option may cost more than its listed starting price.
The Mutant Metals UDA is the customization option. Its three spacing ranges, rack-fit choices, colors, removable handles, and optional thicker 45 mm handles give buyers many ways to tailor it. Its standard 35 mm grip is considerably slimmer than REP’s 50 mm grip, and its $399.99 starting price is roughly double REP’s. Mutant Metals lists its weight as approximate and describes more than one method of vertical storage. Its published lead time was about 14–15 weeks when checked, so verify that before ordering.
One important distinction: “folds” is convenient shorthand, but these storage mechanisms are not identical. REP describes swinging its attachment up and securing it with a mag pin. Rogue and Mutant Metals describe flipping or repositioning theirs into vertical storage. The Monster Matador does not have a built-in on-rack vertical storage mode. Rack compatibility should still drive the final choice: these products are built for different upright and hole configurations, even when their specs look similar.
What I Like and What to Consider
The combination of thick, fully knurled handles and vertical storage makes this more interesting than a basic rack-mounted dip bar. I especially like that you can leave it on a compatible rack between workouts. At 34.1 lb, having a dedicated storage position is a real benefit.
The limitations are straightforward: it is designed around REP’s 5000 Series upright geometry, the grip width is not mechanically adjustable, and the knurled 50 mm handles will not suit everyone. You also need enough open upright space for both use and storage, plus a stable rack setup for loaded dips.
Final Thoughts
On paper, the REP Fitness Dip Attachment 2.0 gets the details right where many dip attachments feel like afterthoughts. The 50 mm volcano-knurled handles are the headline feature, offering a secure, substantial grip that could feel better than many commercial gym dip stations. The fold-up, on-rack storage is the feature that could make you use it more often.
If you already have a compatible REP 5000 Series rack and want a serious dip station without dedicating floor space to a separate machine, this one deserves a close look. I would reserve a final verdict on grip comfort and real-world stability until training with it, but the specifications and design make a strong first impression.
Product: REP Fitness Dip Attachment 2.0
